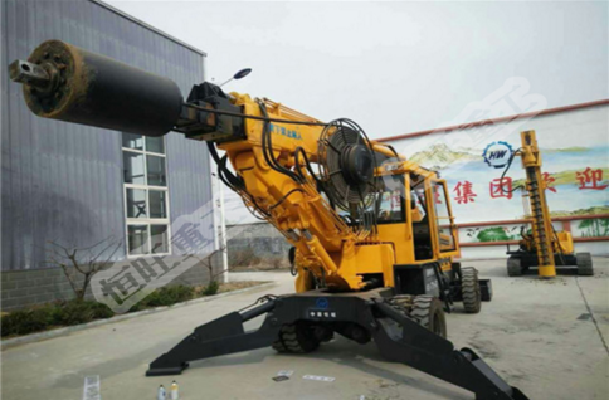

Rotary drilling rig is a kind of construction machinery, which is suitable for the construction of foundation engineering. Mainly suitable for the construction of sand, clay, silty soil and other soil layers, and has been widely used in the construction of grouting pile, continuous wall, foundation reinforcement and so on.
The rated power is generally 125~450kW, the power output torque is 120~400kN / m, the maximum pore diameter can reach 1.5~4m, the maximum hole depth is 60~90m, which can meet the requirements of various types of large foundation construction.
Outline dimension 7500*2300*3000 (mm)
Track 2200 (mm)
Wheelbase 2800 (mm|)
Vehicle weight 5-10 (T)
Engine power 80-120 (HP)
Piling depth 1-15 (m)
Maximum rotation angle 360
450-12000 (mm) maximum diameter of drill pipe
Walking speed 5-8 (MAI)
Hydraulic system working pressure 16-30 (Mpa)
Hydraulic system flow 22-30
