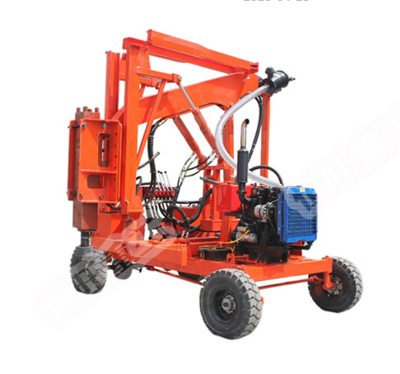

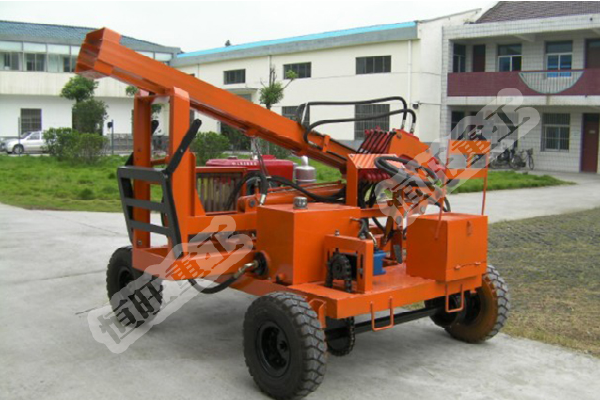

Introduction of hydraulic pile driver
Hydraulic piling machine is highway guardrail installation construction and maintenance engineering is the road company to the size of the project team and the necessary equipment of the equipment in our country even foreign highway guardrail installation plays a very important role. Since its establishment has been engaged in highway fence installation, maintenance, repair, construction equipment, R & D and manufacturing.
Hydraulic pile driver parameters
Name value
Engine power 17KW24
Pile machine external size x W x x 2600 x 2000 x 3800mm
Weight of whole machine 2600kg
Hydraulic system pressure 16MPa
Work flow 36-65L/min
Impact frequency 10-15Hz
Track 1670mm
The quality of 230KG
Working efficiency of 1 piles /1-2min
Walking mode driving
Speed 5-10KM/H
Suitable for pile type steel pipe pile, pile
Application of tube diameter less than or equal to 250mm
The immersed depth of less than 2700mm
