Functions: piling, drilling, pull out the pile
Equipment usage area:
1, highway fence drilling, piling, pulling pile
2, other kinds of site piling (such as farms, pastures, orchards, etc.)
3, highway field engineering construction
Power configuration: reasonable power, superior performance of the diesel engine, for the construction of a powerful source of power, the power of reliability, fuel economy, has been greatly improved.
Hydraulic system: advanced hydraulic system, high quality hydraulic components of the assembly process, to ensure the high efficiency and durability of the hydraulic system.
Form design: the whole frame structure is excellent, the material is complete national standard. High strength, good stability, in line with the industrial aesthetic design ideas, the operator's working space is more spacious.
Production process: the production process more reasonable, wear-resistant parts are using heat treatment process. The welding process is rigorous, the frame welding of the whole to stress treatment, reduce deformation, improve the detection equipment.
Performance characteristics:
1, mature and reliable chassis design, high altitude local driving force without attenuation, the slope of the mountain construction without pressure, is the first choice for safe and reliable.
2, 4 cylinder stepless speed change, easy to move, special road can be automatically transitions, convenient operation, high accuracy, positioning speed faster and higher efficiency 260 type approximately 1% 10.
3, unique cooling design, to ensure that the equipment for a long time to work.
4, one of the track action is smooth, drilling (piling) high precision.
5, innovative hydraulic pump design, greatly improve the efficiency of the construction.
6, all wheel drive, four wheel brake
Main technical parameters:

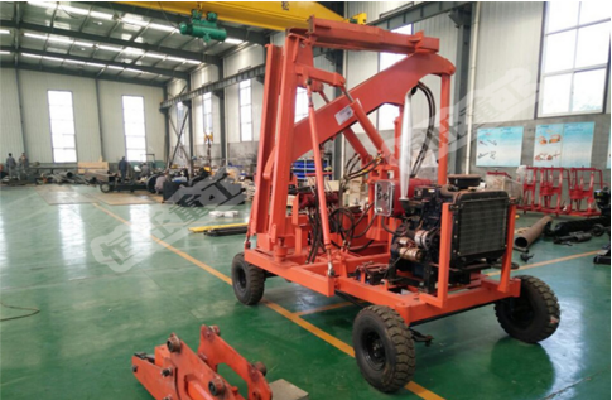

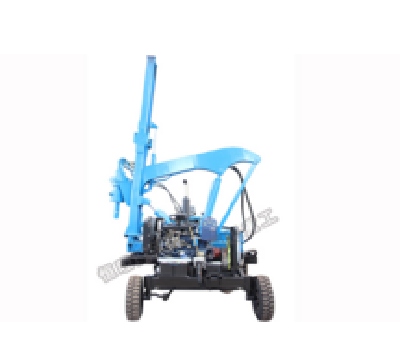

Full hydraulic drilling machine
Without the power of the diesel engine (KW) 32
Hydraulic system flow (L/Min) 80-110
Rated system pressure (Mpa) 15
Track 1620 (M)
Wheelbase (M) 2070
Overall size (L * w * h)
Weight (Kg) of about 1900
Hydraulic hammer weight of piling device ((Kg) 180)
Hydraulic hammer striking frequency (Bpm) 500-900
Hydraulic hammer working flow (L/min) 40-70
Hydraulic hammer working pressure (Mpa) 11-14
Drilling unit power head weight (Kg) 140
The hole diameter (Mm) Phi Phi 200 120
Drilling speed (Mm/Min) 800 - 2000
Shock frequency (Bpm) 900-1200
Working pressure (Mpa) of the impact device 0.6-1.2
Impact device consumption (m3/min) 7-13
