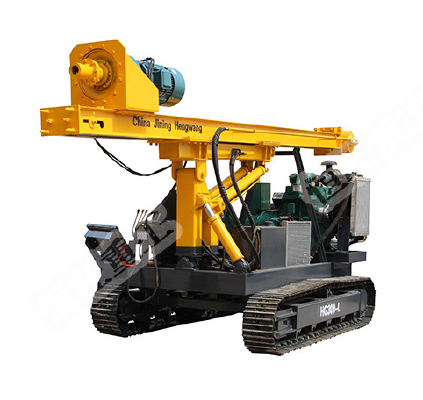

Photovoltaic pile driver
Piling speed, an average of 3 minutes can be achieved piling 6 meters deep, that is, 3 minutes to play a hole.
Oil province, is an average of about half of the oil consumption of the pile driver, a year for you to save a pile of money.
Drill with manganese steel, through special processing, applicable to all kinds of geological environment.
Crawler walking, walking and climbing ability.
The frame can be moved around, the drill can be adjusted, and the piling positioning is accurate.
Specification Machine
Rated power rated power KW 55
Rated speed rated speed r/min 2400
Starting voltage starting voltage V 24
Size (length * width * height) dimension size mm 2010 * 4290 * 4370
Minimum ground clearance minimum ground interspace mm 380
Track plate width track shoe width mm 260
Pole top Maximum upright rod height mm 4370
Drilling diameter drill diameter 130--800 mm
Maximum drilling depth Maximum drill depth mm 3600
Drill speed rod rotation speed r/min 71
Main pump model pump model CBG1 F032/032 - Main
Main pump speed main pump rotational speed 2000-2400 L/min
Main pump pressure main pump press Mpa 20
Main valve flow main valve flow L/min 100
Hydraulic tank volume Oil Tank Capacity L 200
Climb slope degree angle climb 35
Maximum travel speed Maximum travel speed KM/h 5
