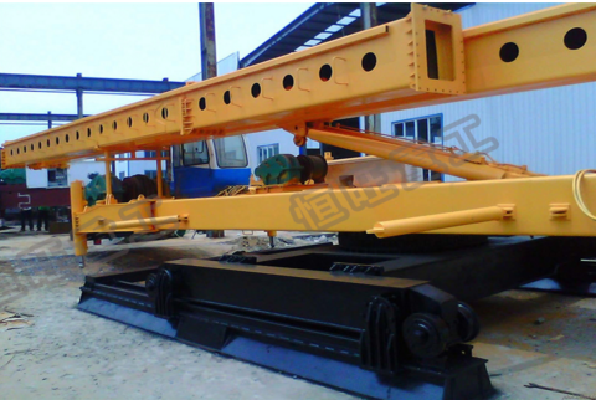

Pile machine composed of two parts of the machine including the hydraulic walking pile frame and drilling system. The pile frame adopts the hydraulic action type chassis, the automation degree is high, can walk and turn automatically, the hydraulic support leg is provided with the aid of walking and turning and increases the stability of the whole machine. The pile frame is designed with tow line device, which can transfer the whole machine. The upright post is a folding box type upright post, and the flange connection mode is controlled by the hydraulic cylinder. Drilling system comprises a power head and drill, power head of the output shaft and screw drill is hollow, the pile machine with long spiral hole, by center of the rod tube concrete {or mud pump sending concrete CFG pile construction, which can drill into a hole of a machine, can also be used to dry into the hole, grouting and replacement of change drill can also be taken deep mixing a variety of engineering construction.
Maximum drilling depth 23m
Drilling diameter 300-600mm
Maximum lifting force KN 240
Tilt angle 3O
Effective length of column mm 26000
Power head effective power 55*2 kw
Drilling speed r/min 23.5
Power head maximum output torque KN.m 35.1
Walking distance mm 1500
Turning angle 180
Footwear ground than pressure kn/m2 50
Maximum working pressure of hydraulic system MPa 16
The working status of the ground allows the maximum slope of 2 degrees
External dimensions (length * width * high mm) working status 10370*5000*27100
External dimensions (length * width * high mm) consignment status 14500*3000*3960
Pile machine quality T working status 40
Pile machine quality T consignment status 251
