Assumes the product has a power source, exciter, and connected to the power supply and the transmission shaft of the exciter is composed of three parts. The structure has the advantages of novel structure, small volume, light weight, convenient operation, strong maneuverability, and is not limited by the environment of the power supply. Can not only vertical piling, can also be inclined to play. Compared with the labor intensity of the manpower piling operation, the operation efficiency is high, and the operation mode of the manpower piling is replaced, and the mechanization of the piling operation of the flood prevention and rescue operation is realized.
Application field of]]]] portable flood control of the piling machine: a breach to intercept the embankment, anti wave berm, grab the high crest, reinforcement embankment collapse, reinforcing the embankment. Is a new dedicated to flood the flood, before the flood season, flood dike reinforcement and maintenance, rivers Lake embankment pile driving machinery. It not only replaces the current manpower to fight the way of operation, reduce labor intensity, improve the efficiency of piling, but also to achieve the mechanization of flood fighting and rescue.
]]]] by the vast number of users for practical use, generally reflect the product can meet the actual needs of the piling work of flood control, use to replace the human ramming dozen operating mode, not only to reduce the labor intensity and improves the operation efficiency, welcomed by the majority of users.
[flood prevention and emergency pile driver] performance parameters:
[flood prevention and emergency piling machine] rated pressure: 0.4MPa ~ 0.8MPa
The flood control [piling machine] impact frequency: = 45 /min
The flood control [machine] for piling pile diameter: less than 200mm
The [] to flood control piling machine:
The [machine] flood control piling pile hammer stroke: 140mm
The flood control [machine] piling gas consumption: 3.8 * lOcm/min
The flood control [machine] piling temperature: -5 ~ 60
Pile driver:
The structure of flood control and emergency rescue pile driver: shock frequency modulation
The maximum impact energy of flood control and rescue pile driver: 110.46N..M
The flood control pile machine weight: 74Kg shaft length: 4m
Working parameters of pile driving machine:
1) flood control piling machine operation object: the river embankment in Hutang (homogeneous soil)
2) the pile diameter: 60 - 120mm
3) the length of the flood fighting and emergency rescue pile driver: less than or equal to 3000mm
4) pile driving speed of flood control and emergency rescue: 500-1000mm/min
[flood control and flood fighting pile driver] using method:
[1] flood control piling machine pile (wood and steel) are inserted vertically on the ground in need of piling.
II [flood control piling machine with L ~ 2 pneumatic piling machine carried on top of the pile, with the bottom fixed pile chuck three fixed screw Ding locking and pile size adjustment screw nail.
[flood prevention and flood prevention and rescue] with a rubber pipe and pneumatic piling machine and gas source connected.
4 [flood control piling machine vertical support piling machine, will switch to the on position, pneumatic piling machine starts to work continuously.
Fifth [flood control piling machine to pile into the desired depth, and pull to the closed position, thus putting an end to the piling operations.

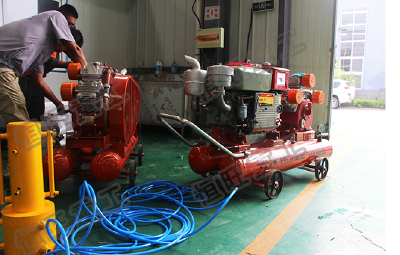

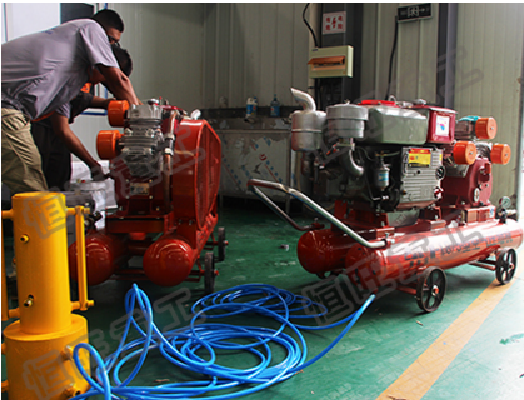

The diesel engine (= madelwh: (660*500*750)
Main engine: long width height (450*350*450)
Pile driving force device:
Assumes the diesel engine model: 175R
* * * Power: 4.85KW
With speed: 1200R /min clutch.
Total quality: 73kg power plant.
