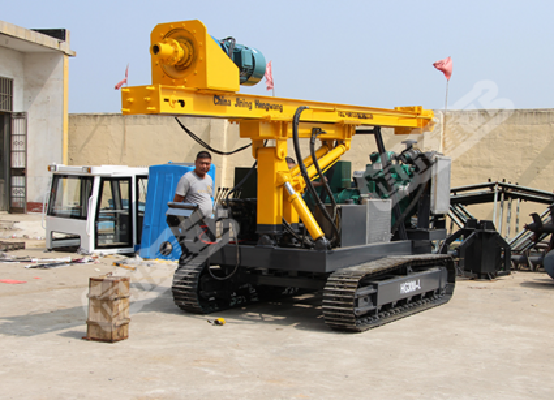

Crawler long spiral piling machine
Piling speed, an average of 3 minutes can be achieved piling 6 meters deep, that is, 3 minutes to play a hole.
Oil province, is an average of about half of the oil consumption of the pile driver, a year for you to save a pile of money.
Drill with manganese steel, through special processing, applicable to all kinds of geological environment.
Crawler walking, walking and climbing ability.
The frame can be moved around, the drill can be adjusted, and the piling positioning is accurate.
Item
Outline dimension dimension 7300*2100*2850 mm
Minimum ground clearance Minimum ground interspace mm 230
Pole height upright rod height mm 7500
Telescopic trajectory flexible track mm 800
The weight of the whole machine machine weight kg 7200
Walking speed Walking speed km/h 3
Climb slope degree angle climb 30
Engine model model Weichai engine 105
Engine power engine power kw 88
Engine speed engine rotation speed r/min 2200
KW engine block power power 40 -50.
Rod pressure pole press 16-20 MPa
Leg pressure airleg pressure 16-20 MPa
Maximum pressure Maximum press MPa 20
Main pump flow main pump flow l/min 32
Drill diameter 100-800 mm of pile hole diameter
Piling depth drill depth 6-20 M
Drill speed rod rotation speed 40-65 r/min
Pull out force pull force kn 100
Angle of rotation angle rotation 360
